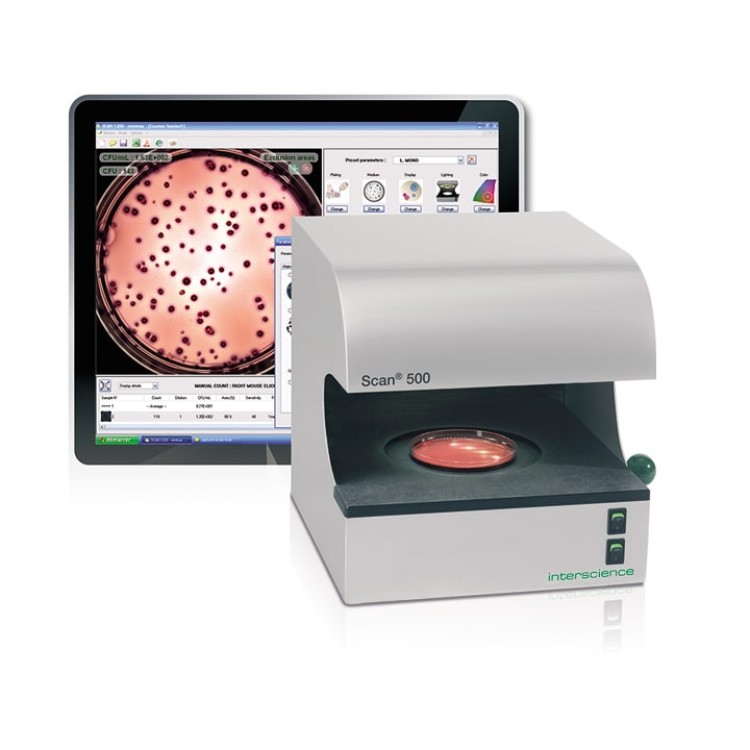

Scan 500 Automatic colony counter Efficiency
Scan 500 is an automatic colony counter that ensures fast and efficient counting of colonies, including on chromogenic agar. It guarantees excellent reproducibility. The images and results are saved and usable anytime. Scan 500 is also an inhibition zone reader.
- Minimum size of detected colony: 0.1 mm
- Camera: 1 megapixel - zoom x 28
- Counting on Ø 55 - 90 mm round Petri dishes
- Counting on pour, surface, Spiral, circle mode plated Petri dishes
- Counting on chromogenic agar
- Inhibition zone reader
Specifications
| Scan 500 | |
| Reference | 436 000 |
| Type of colony counter | Automatic |
| Camera | CMOS color camera |
| Lens | M12 lens |
| Zoom | x 28 |
| Resolution | 1 megapixel |
| Counting time | Up to 1000 colonies per second |
| Minimal size of colony | 0.1 mm |
| Lighting technology | Long life white LEDs / Dark Field |
| Lighting system | Automatic with 6 combinations, top and/or bottom light, white or black background |
| Counting | Automatic with manual control |
| Counting on Petri dishes | Ø 55 mm - Ø 90 mm |
| Colony counter | N |
| Inhibition zone reader | N |
| Counting on pour, surface, Spiral and circle plated Petri dishes | N |
| Counting on chromogenic dishes | N |
| Automatic separation of clustered colonies | N |
| Creation of polygonal exclusion zones | N |
| Manual control to add or substract colonies | N |
| LIMS connection | N |
| USB connection | N |
| Available with dataLink traceability system | N |
| Stainless steel | N |
| Color detection | 7 colors on the same dish + 1 color to exclude |
| Data export | Recountable session, PDF, jpg, png, bmp, ExcelTM |
| Data security | Modified data traceability in conformity with 21 CFR part 11 / Connexion with LIMS/SIL systems |
| Results/traceability | Image / sample number / comments / date / time |
| Languages | French, English, Japanese, Chinese, Russian, Spanish, German |
| Dimensions (w x d x h) | 28.5 x 26.5 x 28.5 cm |
| Net weight | 8.4 kg |
| Box (w x d x h) | 50 x 40 x 40 cm |
| Gross weight | 11 kg |
| Voltage - Frequencies | 100-240 V~ 50-60 Hz |
| Power | 20 W |
| International protection marking | 00 |
| Operating sytem | WindowsTM : 8 or 10 |
| Processor | Intel i3 or better, 2.8 GHz, quad core recommended |
| RAM | 4 GB (2 GB of RAM must be reserved for the exclusif use of the Scan) |
| Equipments | USB 2.0 port free |
| Screen | 1280 X 1024 pixels or superior |
| Software update | 3 years |
| Warranty | 3 years |
| In compliance with | 21 CFR Part 11, ISO 7218 and AOAC 977.27 |
Dimension:
Code:
Scan 500
