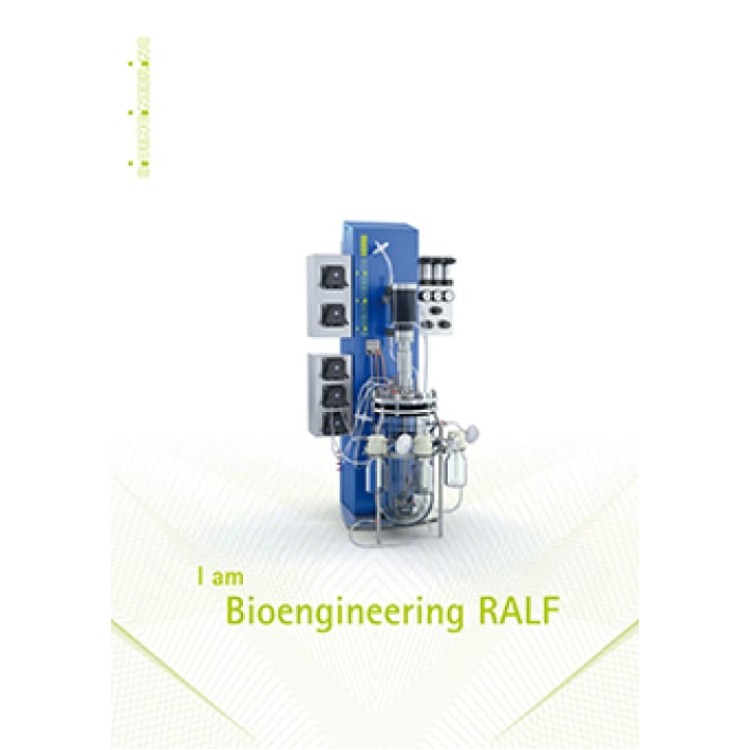

Bioengineering Ralf

IDR0

Code: Bioengineering Ralf

Brand: Bioengineering

Category: > Life Science Instruments > Cell System

Description:

Features

Equipped for batch, fed-batch or perfusion processes
Accurate process control with high-grade probes
Select measuring and control equipment of your choice can be integrated via an array of interfaces
Controlled via BioSCADA - flexible and customizable to meet your needs, compliant with 21 CFR Part 11
Ideal for scale-up and scale-down testing due to matched system design
Optimized footprint for single or multiple configurations
Built with robust, long-lasting components - based on 45 years of experience

Processing capacity: 1.3 / 2.5 / 3.3 / 4.5 liters
Vessel: Single or double-walled glass vessels
Drive: Direct top drive with axial face seal or magnetic clutch
Stirrers: Rushton, propeller stirrers, pitched-blade stirrers
Aeration: Tube, ring sparger, sinter sparger, bubble-free gassing
Temperature control: Heating pad and cooling fingers, heating circuit via perfused baffles, heating circuit via double wall of vessel
Measurement and control technology: Agitation, temperature, pH, pO2, foam/level control, redox, OD, weight, exhaust analysis, numerous interfaces and regulators
Gas modules: Up to 6 individual gassing lines with pulsed valves or mass-flow controllers
Pump modules: Up to 6 pumps integrated in the control unit and one external pump
BioSCADA: Sophisticated control and visualization software including data collection
Configuration: Up to 6 bioreactors controllable with a single control unit
