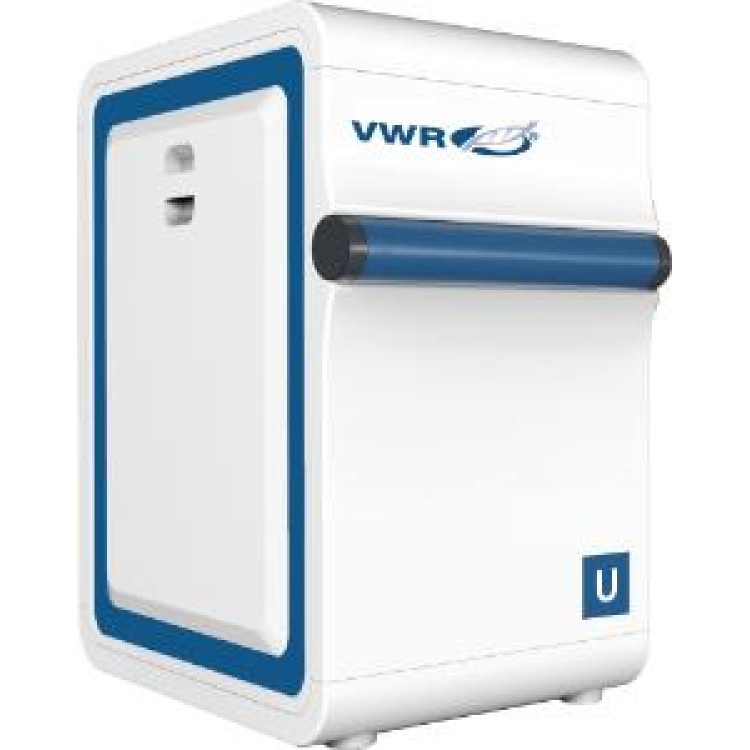

Ultrapure water system, U series

IDR0

Code: U series

Brand: VWR

Category: > Water Purification System

Description:

This 'two in one' lab water system produces ultrapure (Type I) and RO (Type III) water from tap water. Quality of ultrapure water meets or exceeds ASTM, CLSI, CAP, and ISO Type I water standards.

Simple and intuitive to dispense water via the dispenser or central console
Central console is an 8 inch waterproof touch screen, providing user with full control and access of system performance
One water system can drive several dispensing units ('1 + N mode')
Dispensing flow rate is up to 2 L/min and volumetric dispensing is available
RFID-tagged consumables for easier tracking of lifetime and performance
Wireless communication option to control multiple dispensers and the central console (optional)
Real time TOC and resistivity/conductivity monitoring
Optional tank circulation mode to maintain stable water quality in the tank
Users can see essential information (water quality, system status, warnings) on the dispenser unit and the central console at any time (data stored up to 2 years; downloadable)

SPECIFICATIONS

Model	U12	U24	U32
Feed water	Tap water (conductivity: <2000 µS/cm / TDS: <1000 ppm)	Tap water (conductivity: <2000 µS/cm / TDS: <1000 ppm)	Tap water (conductivity: <2000 µS/cm / TDS: <1000 ppm)
Flow rate	Max. 2 l/min	Max. 2 l/min	Max. 2 l/min
Production flow rate (l/h)	12	24	32
TOC content	<5 ppb (Type I)	<5 ppb (Type I)	<5 ppb (Type I)
Resistivity at +25 °C	18,2 MΩ·cm (Type I)	18,2 MΩ·cm (Type I)	18,2 MΩ·cm (Type I)
Particles	No particles >0,2 μm (with a 0,2 μm final filter or Bio filter)	No particles >0,2 μm (with a 0,2 μm final filter or Bio filter)	No particles >0,2 μm (with a 0,2 μm final filter or Bio filter)
Endotoxin	<0,001 EU/ml (with Bio filter)	<0,001 EU/ml (with Bio filter)	<0,001 EU/ml (with Bio filter)
Microorganisms	<0,1 cfu/ml (with a 0,2 μm final filter or Bio filter)	<0,1 cfu/ml (with a 0,2 μm final filter or Bio filter)	<0,1 cfu/ml (with a 0,2 μm final filter or Bio filter)
RNases	<0,5 pg/ml (with Bio filter)	<0,5 pg/ml (with Bio filter)	<0,5 pg/ml (with Bio filter)
DNases	<10 pg/ml (with Bio filter)	<10 pg/ml (with Bio filter)	<10 pg/ml (with Bio filter)
W×D×H (mm)	320×440×540	320×440×540	320×440×540
